50kV GS-HV, High Voltage Electrical Insulation Mat, Corrugated, Grey, Class 4, IEC61111:2009

A) Product Name

Model: GS-HV Corrugated Switchboard Thermoplastic Elastomer Mat

B) Raw Material

RoHS-2 Thermoplastic Elastomer

C) Purpose

Switchboard matting is a non-conductive high-density Thermoplastic Elastomer compound engineered to prevent electric shock around high-voltage equipment.

The non-conductive Thermoplastic Elastomer compound creates an insulating barrier between the electrical source and the ground.

The Thermoplastic Elastomer is suitable for indoor application.

D) Scope

Our GS-HV is tested according to IEC61111:2009 Clause 5.6.4.3 under IEC 61111:2009 Class 4, Ideal for Dielectric Voltage / Withstand Voltage: 50,000 VAC and Recommended Maximum use Voltage: 36,000 VAC.

E) Characteristics

1) Brand Name: GSE™

2) Model: GS-HV

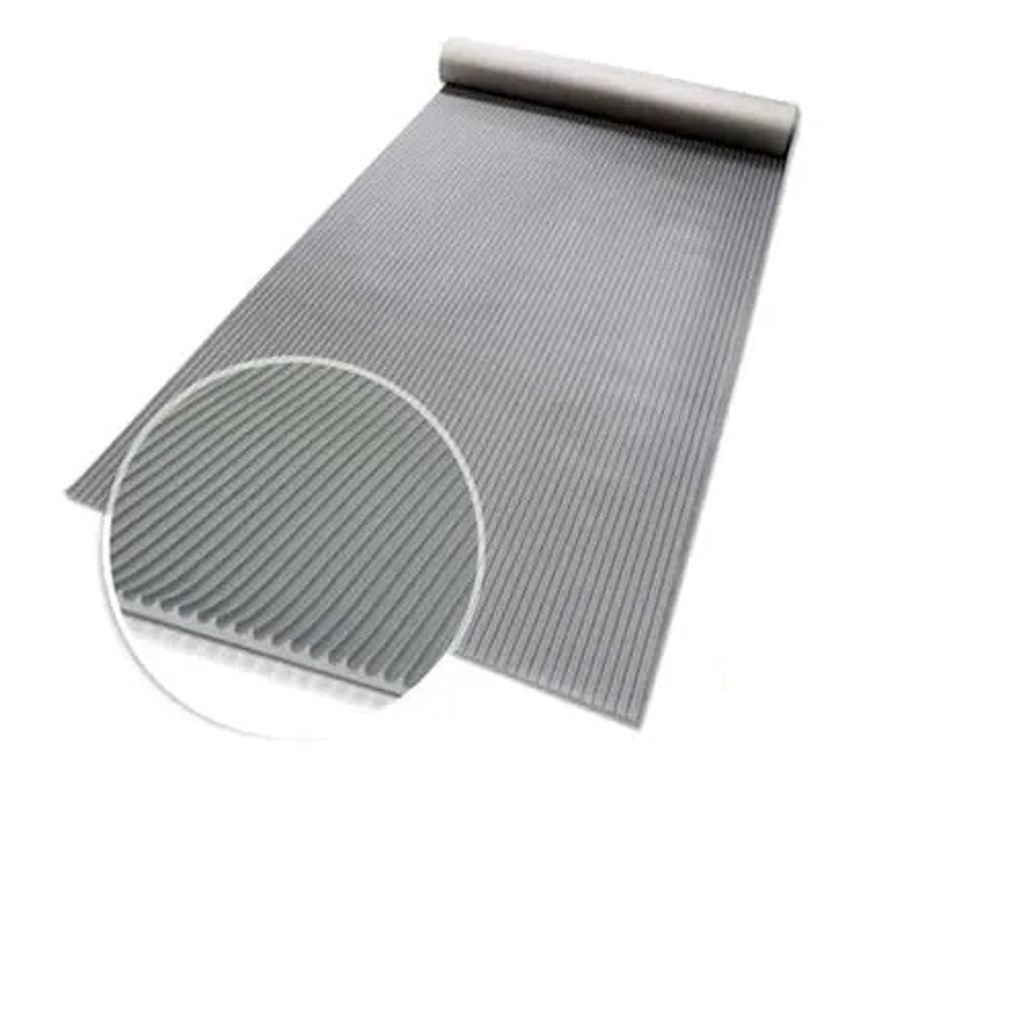

3) Top Surface - Anti-slip corrugated, with an anti-slip corrugated surface to provide a safe working environment, the pattern surface “grabs” the bottom of footwear, improving traction and making it safe from slipping.

TESTED BY THREE (3) ACCREDITATED BODIES

5) Test Certificate IEC61111:2009 Class 4 Withstand Voltage 5.6.4.3: Tested by 3rd Party Accredited Laboratory (TNB Labs)

6) Test Certificate ASTM D635: 2018 - Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Plastics in a Horizontal Position: Tested by 3rd Party Accredited Laboratory (SIRIM)

7) Test Certificate RoHS Directive Commission Directive (EU) 2015/863: Tested by 3rd Party Accredited Laboratory (SGS) RoHS 1 & 2

8) Product Compliance Status:-

A) BS EN 61111 Clause 5.6.4.3 Class 2, Voltage Withstand Test (TNB Lab)

B) Comply with EU RoHS 1 & 2 Standards (RoHS 2011/65/EU) (SGS)

C) Test Certificate ASTM D635: 2018 (SIRIM)

F) Specifications

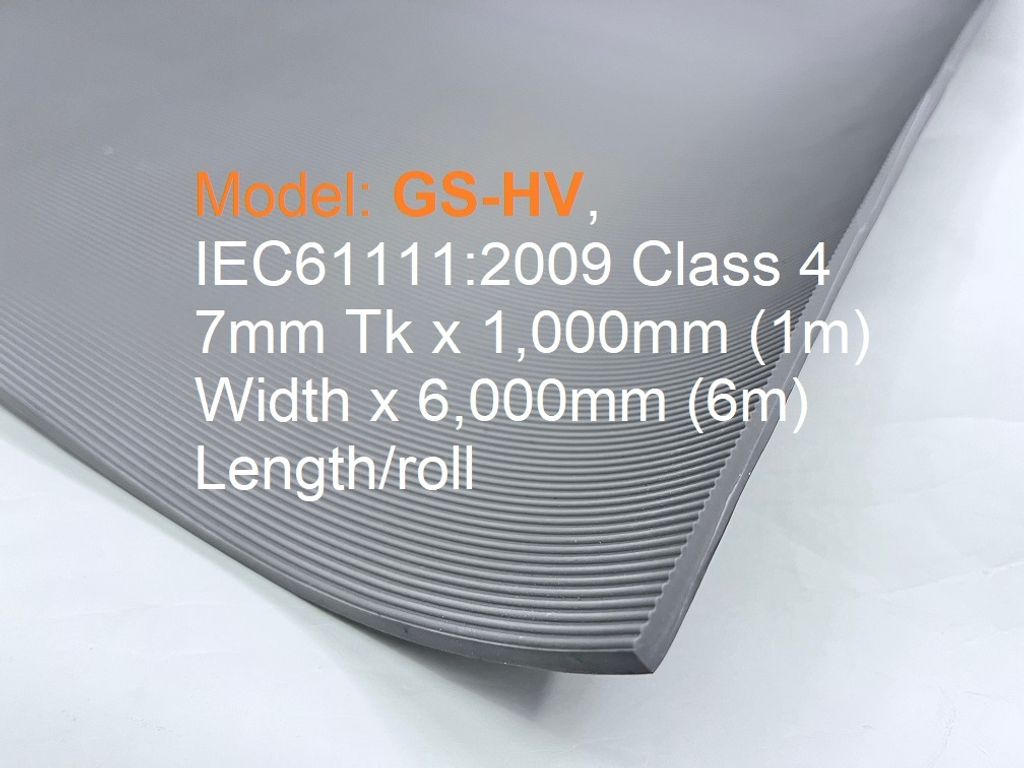

1) Nominal Thickness: 7mm

A) Brand: GSE™, Model: GS-HV, Switchboard Thermoplastic Elastomer Mat,

(Grey colour) , 7mm Tk x 1,000mm (1m) Width x 6,000mm (6m) Length/roll
