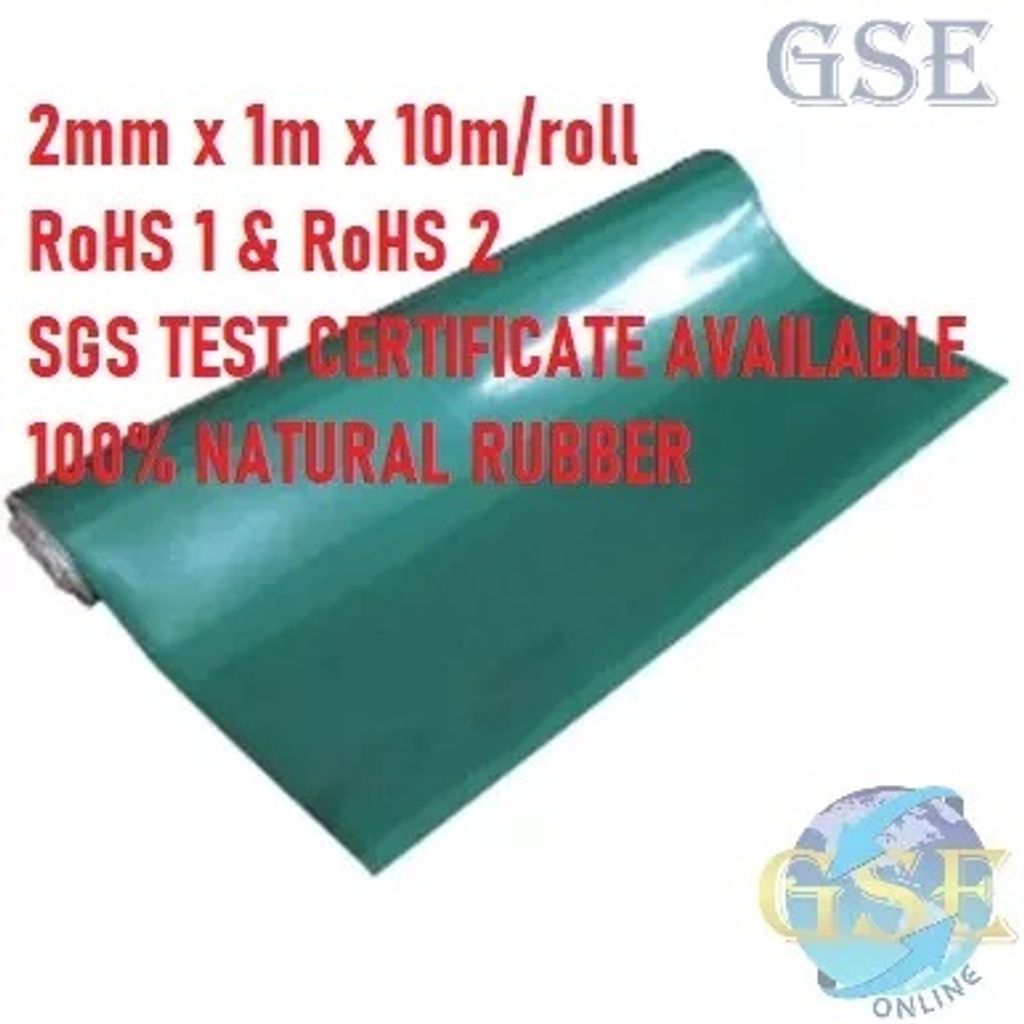

RoHS-2, ESD Mat/Anti-Static Table Mat, Glossy/Shining, 2mm Thickness, 1m Width x 10m Length/roll

A) Product Name

RoHS 2 Green ESD Rubber Mat.

B) Raw Material

100% Homogeneous Natural Rubber (No recycled/reclaimed rubber),

C) Purpose

To prevent equipment damage resulting from the triboelectric voltage of the static dissipative

D) Scope

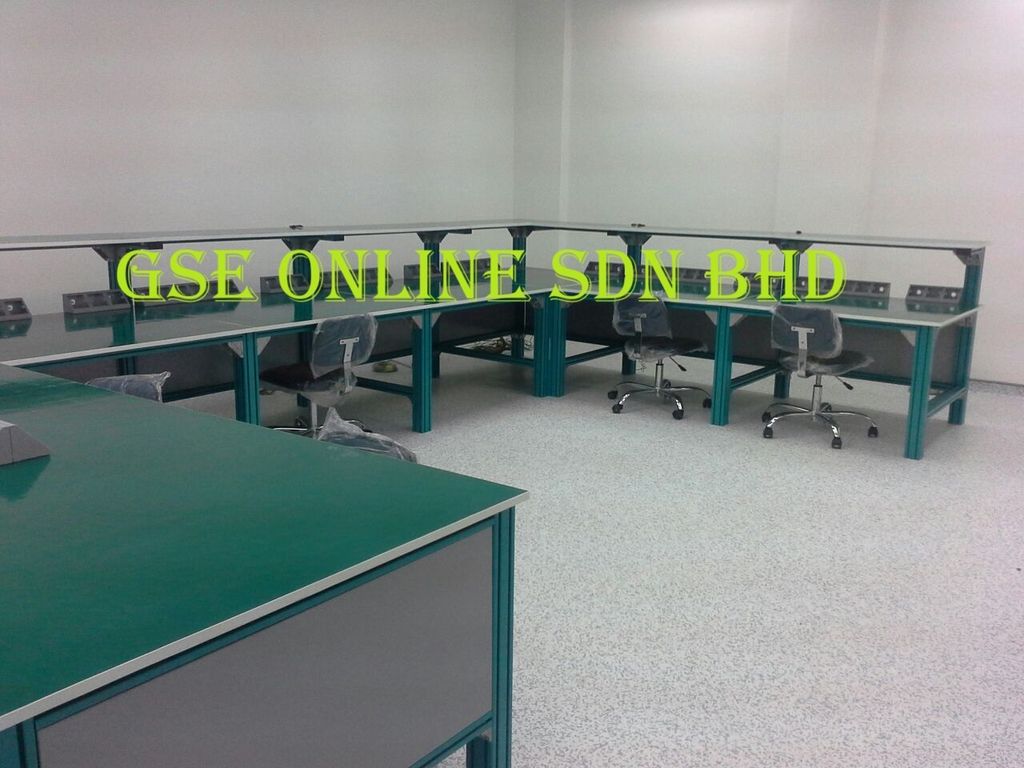

Ideal for use in Workstations, Electronic Manufacturing, Pharmaceutical Plants, Cleanrooms, Fiber Optics, Electronic Assembly, Electronic Warehousing, Circuit Assembly, Aerospace, CMOS chips, microprocessors, semiconductors, dish drivers, composites, LCD screen products, circuit product lines, hospitals and Pharmaceutical industries, precision instrument etc.)

E) Characteristics

1 ) The anti-static mat comprises two layers: the top layer, dark green, is static dissipative, and the Black bottom layer is conductive. These ESD mats offer excellent resistance to oil, grease, and most common solvents, such as hot solders and soldering irons.

2) Features: The mat's antistatic properties are according to the relative requirements of SJ/T 10694-1996.

The surface resistance of the static dissipative layer ( 1.0 x 10e6 ~ 10e9 Ω ),  The surface resistance of the conductive layer ( Below 1.0 x 10e6 Ω ),  Volume resistance ( 1.0 x 10e6 ~ 10e9 Ω ), Surface triboelectric voltage of the static dissipative material < 200 V, The time of static discharging below 100V should be less than 1 second.

3) Part / Model No. : HTESD2GRN1X10S

4) Compliant to GB/T14437-97,

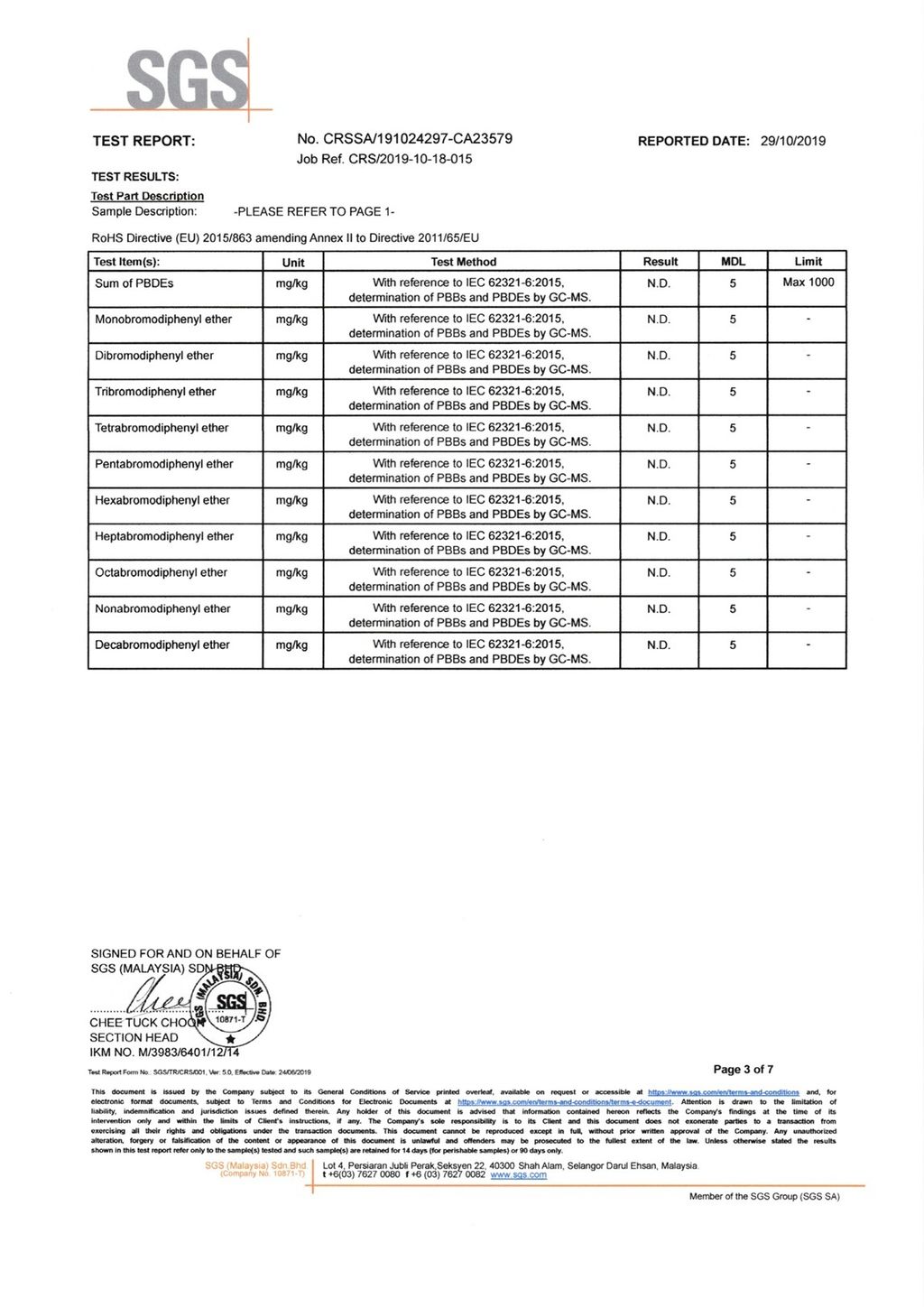

5) Complied to RoHS I & II, On 4th June 2015, Commission Directive (EU) 2015/863 was published in the Official Journal of the European Union (OJEU) to include the phthalates ( BBP, DBP, DEHP and DIBP; these chemicals are used to soften PVC and Vinyl products ) into ANNEX II of the RoHS Recast Directive. The new law restricts each phthalate to no more than 0.1% ( mg/kg = ppm; 0.1wt% = 1,000ppm ) in each homogeneous material of an electrical product.

6) Top Layer Material: Green ( 100% Natural Rubber ) ,  Bottom Layer Material    : Black ( 100% Natural Rubber )

7) Surface Resistivity          :

a) Top ( 1.0 × 10 ⁷ ~ 1.0 × 10⁹ Ohms )

b) Bottom ( 1.0 × 10² ~ 1.0 × 10⁶Ohms )

8) Hardness ( IRHD, Micro Hardness Tester Wallace )

a) Top Green Layer             : 70 ± 5° ( Shore A )  ,  b) Bottom Black layer : 70 ± 5° ( Shore A )

9) Overall Thickness           : 2 mm

F) Specification

1) ~2mm (Thickness) x 1,000mm (1m) (Width) x 10,000mm (10m) (length)/roll, weight around 30kgs/roll
